GeForce RTX 3070 GAMING Z TRIO 8G LHR

GeForce RTX 3070 GAMING Z TRIO 8G LHR

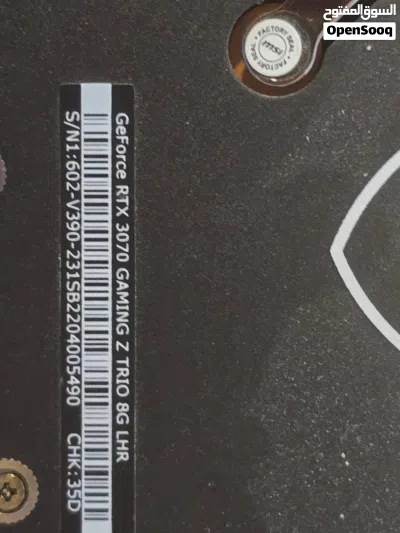

• S/N (Serial Number): 602-V390-231SB2204005490
• CHK (Check Number): 35D
This is a premium, custom-cooled graphics card manufactured by MSI. Below are its complete technical specifications:

Technical Specifications
Core & Architecture
• Graphics Processing Unit (GPU): NVIDIA GeForce RTXTM 3070
• Architecture: Ampere (Samsung 8nm process)
• CUDA Cores: 5888 Units
• Boost Clock Frequency: 1845 MHz (Factory Overclocked)
Memory Profile
• Memory Size: 8 GB
• Memory Type: GDDR6
• Memory Bus Width: 256-bit
• Memory Speed: 14 Gbps
Display Outputs & Resolution
• Video Outputs:
o 3x DisplayPort (v1.4a)
o 1x HDMI (Supports 4K@120Hz / 8K@60Hz as specified in HDMI 2.1)
• Maximum Connected Displays: 4
• Digital Maximum Resolution: 7680 x 4320
Thermal & Board Power
• Cooling System: TRI FROZR 2 Thermal Design (Triple TORX Fan 4.0 setup)
• Power Consumption (TDP): 240W
• Power Connectors: 2x 8-pin PCI Express connectors
• Recommended Power Supply (PSU): 650W
Form Factor & Dimensions
• Card Dimensions: 323 mm x 140 mm x 56 mm
• Slot Width: 2.75-Slot / Triple-slot
• Weight (Card only): 1458 grams
Special Features
• LHR (Lite Hash Rate): Features a hardware/firmware cryptomining performance limiter.
• RGB Lighting: Fully customizable MSI Mystic Light RGB integration.
Manufacturer Links
• Official product overview, utility drivers, and user support documents directly via the manufacturer's resource link: https://gzhls.at
• Official Data Sheet & Resource Center https://gzhls.at/blob/ldb/d/c/5/3/737f706ad5c5de46d078b5eeb0233345061b.pdf
